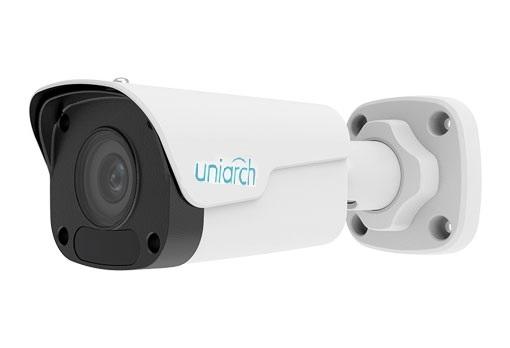

4K UNIARCH BULLET IPCAMERA, 2.8MM U265, HUMAN BODY

Descrizione

Optics
Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265, H.265, H.264, MJPEG
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
Wide temperature range: -30°C to 60°C (-22°F to 140°F)
Wide voltage range of ±25%
IP67
3-Axis
2
DATASHEET
Specifications
IPC-B118-DPF28M IPC-B118-DPF40M
Camera
Sensor 1/3", 8.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0 4.0mm@F2.0
DORI Distance
Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 84 33.6 16.8 8.4
4.0mm 120 48 24 12
Angle of View (H) 112.7° 86.5°
Angle of View (V) 60.1° 44.1°
Angle of View (D) 146.5° 106.4°
Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination
Colour: 0.05 Lux (F2.0, AGC ON)
0 Lux with IR on
Digital noise reduction 2D/3D DNR
Day/Night IR-cut filter with auto switch (ICR)
S/N >56dB
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline Profile, Main Profile
Frame Rate
Main Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps;
2MP(1920*1080): Max. 30 fps
Sub Stream:720P (1280*720): Max. 20 fps
Third Stream:4CIF (704*576): Max. 20 fps
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping NA
HLC Supported
BLC Supported
3
DATASHEET
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS
Compatible Integration ONVIF(Profile S, Profile T), API
Client
EZStation
EZView
EZLive
Web Browser
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network 10/100M Base-TX Ethernet
Certifications
Certifications
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power
12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5.5W
Dimensions (L × W × H) 167.3×62.9×62.7mm (6.6"×2.5"×2.5")
Net Weight 0.45kg (0.99lb)
Material Metal
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity: =95% RH(non-condensing)
Strorage Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity: =95% RH(non-condensing)
Surge Protection 2KV
Ingress Protection IP67
Reset Button Supported
